O-Ring Manufacturer in USA – Industrial Sealing Solutions
Precision-molded elastomer sealing solutions for industrial OEMs, MRO suppliers, and engineering contractors — manufactured to AS568, ISO 3601, and DIN 3771 standards.
American O-Ring Manufacturing for Industrial Applications
As a professional O-ring manufacturer serving the United States market, we supply precision-molded elastomer sealing solutions for industrial OEMs, MRO suppliers, and engineering contractors. Our production capabilities are built around dimensional stability, chemical compatibility, and pressure-resistant sealing performance across a broad range of operating conditions.
- Standard O-rings per AS568
- Metric O-rings per ISO 3601
- DIN 3771 O-rings for European systems
- Custom molded O-rings and rubber seals
- High-performance compounds: NBR, FKM, EPDM, HNBR, Silicone, FFKM
- Engineering support for groove design and material selection
Compliance with International O-Ring Standards
We manufacture O-rings according to globally recognized dimensional and material specifications. Tolerances, surface finish, and hardness are controlled to ensure interchangeability and engineering reliability across all supplied parts.
AS568
Inch-size standard widely used in the United States. Covers dash numbers from -001 to -475 with defined inside diameter and cross-section tolerances.
ISO 3601
International metric O-ring standard. Specifies d1 (inner diameter) and d2 (cross-section) in millimeters with four tolerance grades (A–D).
DIN 3771
European industrial sealing reference used in German and continental European machinery. Dimensional overlap with ISO 3601 with specific tolerance requirements.
Engineering Applications We Serve

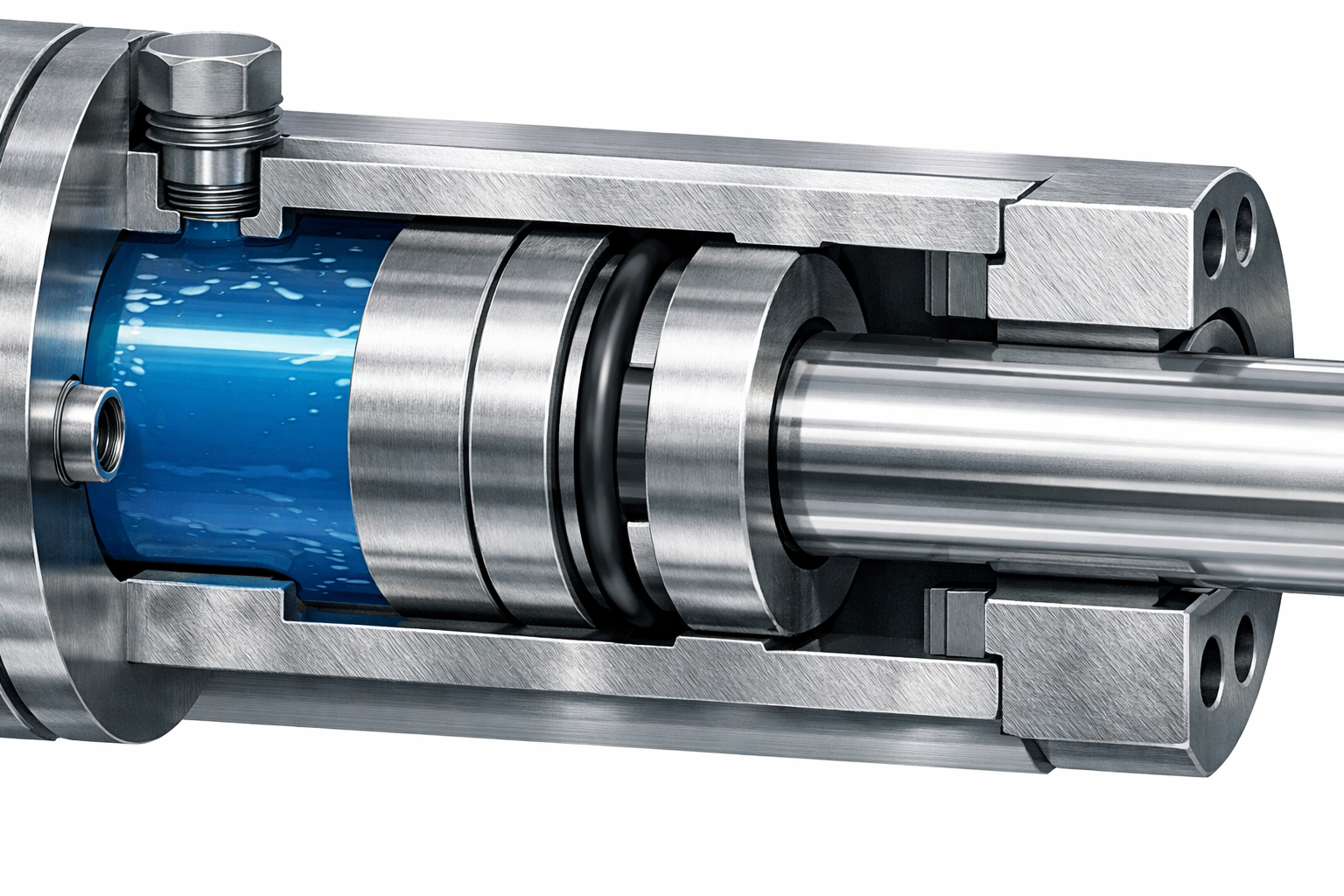

Hydraulic & Pneumatic Systems
High-pressure static and dynamic sealing with resistance to compression set. Compatible with mineral oil and synthetic hydraulic fluids.
Pressure: up to 40 MPa | Temperature: −40°C to +200°C
Oil & Gas Equipment
Chemical resistance to hydrocarbons and sour gas environments. HNBR and FKM options for high-temperature drilling and refining systems.
Compounds: HNBR, FKM | H₂S compatible formulations available
Automotive & EV Systems
Fuel injector seals, brake systems, cooling circuit O-rings, and battery thermal management sealing for electric vehicle platforms.
Compounds: FKM, EPDM, NBR | EV thermal management compatible
Food & Medical Equipment
FDA-compliant EPDM and Silicone compounds. Resistant to steam sterilization with controlled extractables and odor profiles.
Compliance: FDA 21 CFR | Sterilization: Steam / Autoclave
Material Performance Overview
Material selection is determined by operating temperature, system pressure, media compatibility, and expected service life. The following compounds represent the core of our production range.
| Compound | Temperature Range | Key Properties | Typical Applications |
|---|---|---|---|
| NBR (Buna-N) | −30°C to +120°C | Excellent petroleum oil resistance; cost-effective | Hydraulic systems, general industrial |
| FKM (Viton® type) | −20°C to +200°C+ | High-temperature stability; broad chemical resistance | Aggressive fuels, oil & gas, chemical processing |
| EPDM | −50°C to +150°C | Excellent water, steam & glycol resistance; poor mineral oil compatibility | Water systems, steam, brake fluid, food equipment |
| HNBR | −30°C to +150°C | Superior mechanical strength; sour gas resistance | Oil & gas, automotive, refrigeration |
| Silicone (VMQ) | −60°C to +200°C | Wide temperature range; FDA-compliant grades available | Food processing, medical, electronics |
| FFKM | −20°C to +300°C+ | Maximum chemical resistance; extreme temperature stability | Semiconductor, aggressive chemical processing |
For detailed compound selection guidance, refer to our NBR O-Ring page, FKM O-Ring page, and Material Selection Guide.

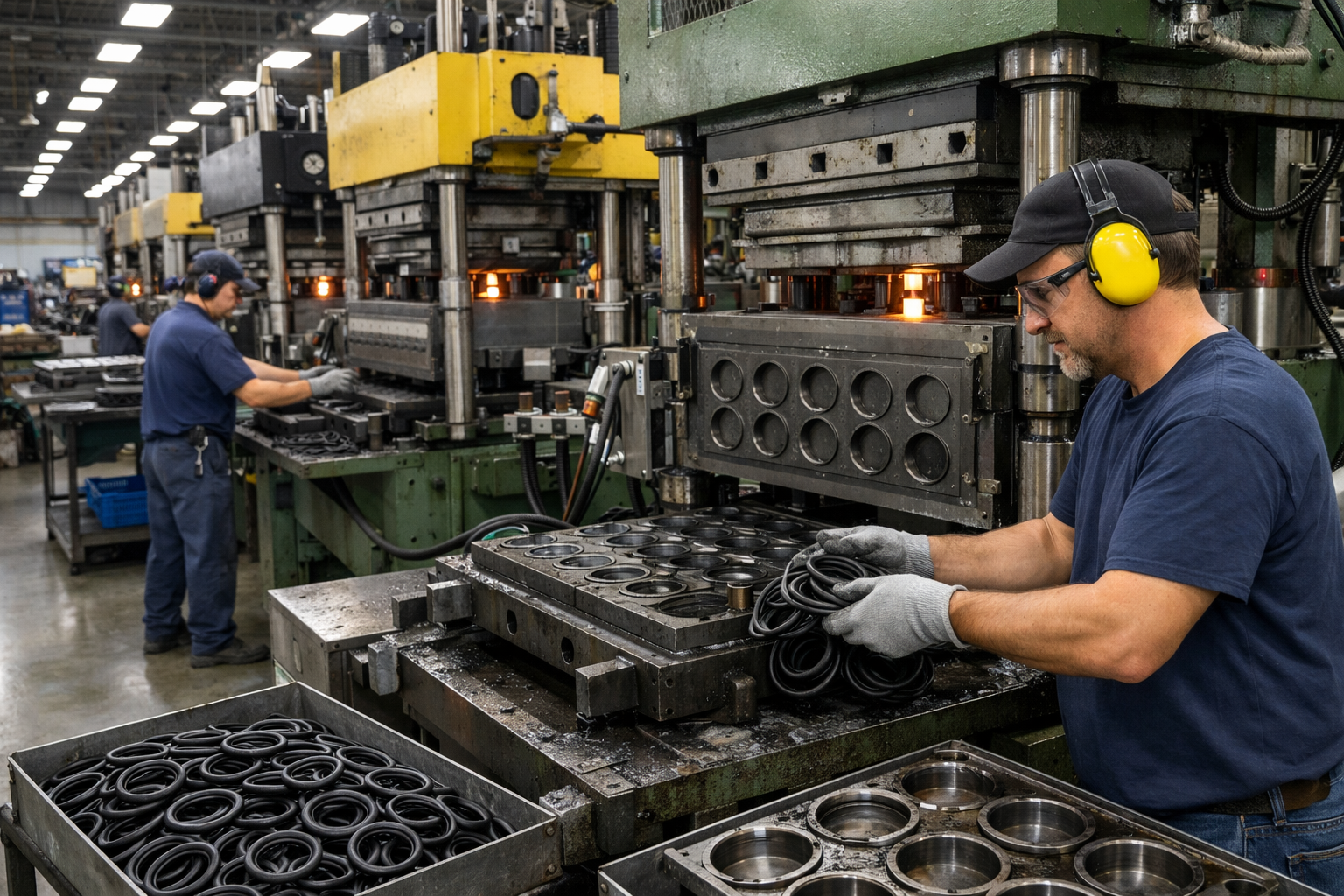

Manufacturing Capabilities in the USA
Production Processes
- Compression molding
- Injection molding
- Transfer molding
- Rubber compounding and mixing
- Tooling design and mold development
- Dimensional inspection and batch traceability
Quality Control
- Shore A hardness testing
- Tensile strength testing
- Compression set testing
- Optical dimension inspection
- Batch material certification
Custom O-Ring Manufacturing Services
We support custom O-ring development for applications where standard AS568 or ISO 3601 sizes do not meet engineering requirements. Custom tooling enables production of non-standard cross-sections, large diameter O-rings, and special compound formulations.
Custom Scope
- Non-standard cross-sections
- Large diameter O-rings
- Special compound formulations
- Extreme temperature applications
- High-pressure backup ring combinations
Engineering Documentation Required
- Groove dimensions (ID, OD, groove width)
- Working pressure (static / dynamic)
- Media type and concentration
- Temperature range (min / max)
- Service life expectations
Global Supply with U.S. Market Focus
While maintaining a primary focus on U.S. customers, we coordinate global raw material sourcing and international logistics to ensure supply chain stability, short lead times, and consistent batch quality. Export-compliant documentation is available for all shipments.
Stable Supply Chain
Multi-source raw material procurement with qualified compound suppliers
Short Lead Times
Stocked standard sizes with expedited production for critical orders
Batch Consistency
Controlled compounding with batch-level traceability and certification
Export Documentation
Material certificates, CoC, and customs-compliant shipping documents
Engineering Authority & Why Engineers Choose a Reliable U.S. O-Ring Partner
We focus on sealing reliability rather than promotional claims. Our engineering-driven approach is built on measurable technical capability.
Standard Compliance
AS568 / ISO 3601 / DIN 3771 dimensional control with documented tolerance verification
Material Traceability
Batch-level compound certification with full material traceability documentation
Compound Development
In-house rubber compounding capability for custom formulation development
QA Laboratory Testing
Shore A hardness, tensile, compression set, and optical dimensional inspection
About Us | Quality Certifications | Manufacturing Capabilities
FAQ – O-Ring Manufacturer in USA
1. What standards do U.S. O-ring manufacturers follow?
Most U.S. industrial O-rings follow AS568 for inch sizes. Metric systems use ISO 3601, while European machinery may require DIN 3771 compliance. All three standards define inside diameter, cross-section diameter, and dimensional tolerances for interchangeable sealing components.
2. How do I select the right O-ring material?
Material selection depends on five primary factors: operating temperature range, fluid or media compatibility, system pressure level, whether the application is static or dynamic, and required service life. For example, NBR suits petroleum-based hydraulic systems, while FKM is preferred for high-temperature or chemically aggressive environments. Refer to our Material Selection Guide for detailed compound comparison.
3. Can you manufacture non-standard O-ring sizes?
Yes. Custom tooling allows production of non-AS568 cross-sections and large diameter O-rings not covered by standard size tables. Engineering drawings or groove dimensions are required to initiate tooling design. Lead times for custom tooling vary depending on complexity. Contact our engineering team via the Custom O-Ring page.
4. What Shore A hardness options are available?
Common Shore A hardness ranges are: 50–60 Shore A for low-pressure or soft-seating applications; 70 Shore A as the standard industrial grade; and 80–90 Shore A for high-pressure applications requiring extrusion resistance. Hardness is verified per ASTM D2240 during batch quality control.
5. Do you provide material certification?
Yes. Material batch traceability and certification documentation — including compound identification, Shore A hardness results, and dimensional inspection records — can be provided upon request. Certificate of Conformance (CoC) is available for all standard and custom orders.
Request a Technical Quote
If your application requires standard AS568 O-rings, custom molded seals, special compound development, or engineering consultation for groove design, submit your RFQ with drawings or specifications.
- Standard AS568 O-rings
- Custom molded O-rings
- Special compound development
- Engineering consultation for groove design
